Product Details
Place of Origin: Zhejiang, China
Brand Name: CIE
Model Number: SA 205
Payment & Shipping Terms
Minimum Order Quantity: 200 pieces
Price: $1.15/pieces 200-499 pieces
Packaging Details: 1.Industry packing only white nylon bag+ outer carton +pallet.
2 Individual single box+outer carton+pallet.
Supply Ability: 10000 Piece/Pieces per Month
Type: |
Pillow Block |
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Agriculture Machinery |
Precision Rating: |
P0 |
Materia: |
Chrome Steel |
Noise Level: |
Z1,Z2 |
Weight: |
0.19KG |
Cage: |
Steel Cage |
Certification: |
ISO9001:2015 ISO14001:2015 OHSAS 18001:2007 |
Precision: |
ABEC 1 ABEC3 |
Dynamic Load: |
10800N |
Static Load: |
78800N |
Servie: |
OEM Service |
Main Market: |
Europe America Africa |
Port: |
NINGBO/SHANGHAI |
Type: |
Pillow Block |
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Agriculture Machinery |
Precision Rating: |
P0 |
Materia: |
Chrome Steel |
Noise Level: |
Z1,Z2 |
Weight: |
0.19KG |
Cage: |
Steel Cage |
Certification: |
ISO9001:2015 ISO14001:2015 OHSAS 18001:2007 |
Precision: |
ABEC 1 ABEC3 |
Dynamic Load: |
10800N |
Static Load: |
78800N |
Servie: |
OEM Service |
Main Market: |
Europe America Africa |
Port: |
NINGBO/SHANGHAI |

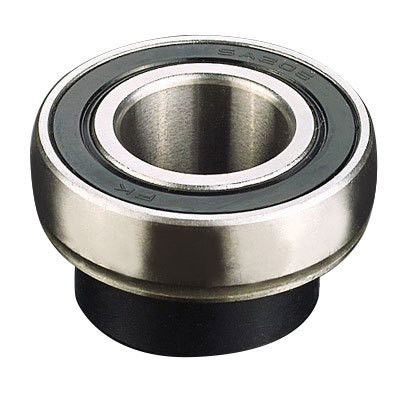

China Bearing Supplier Agricultural Machinery Bearing With Accentric Collar SA 205
Ball bearing with eccentric locking collar is outer diameter in spherical surface,internal construction is the same as deep groove ball bearings of 6200 6300 series.they both can sustain radial and axial loads.We can supply full series of UC200,UC300,SA200,SB200,UEL200,UK200,SER200,CS200,UC300 series bearings.Such bearings are often used in severe operating conditions where they are exposed to dirts,moisture and high temperature.thus,insert ball bearing are usually with grease groove and oil hole on outer ring,at suitable time,we need to replace fresh grease to secure full performance and longer service life of the bearing under operating condition.
1. Material: Chrome steel Gcr15 or stainless steel.
2. Quality grade: ABEC-1,ABEC-3 with noise level Z1V1,Z2V2.
3. Type: UC,UK,HC,SA,SB,SER,CS series from inner bore diameter 12mm to 100mm.
4. Seal structure: plain type, four star type,F type etc.
5. Packing: single nylon bag + single color box +outer carton + pallets
The following parameters are about agricultural machinery bearing with accentric collar SA 205 dimension and structure related, I hope which can help you understand better:
| Item | Agricultural Machinery Bearing With Accentric Collar SA 205 |
| Brand: | CIE |
| ID: | 25mm |
| OD: | 52mm |
| Width | 30.9mm |
| Certification: | ISO9001:2015 ISO14001:2015 OHSAS 18001:2007 |
| Packing | Industry & Single Packing |
| Delivery | 15-35 Days |
| Payment | L/C, T/T, D/P, Paypal |
| MOQ | 50 Piece |
| Advantage | Competitive Prices with Excellent Quality |
Quality is the basis of products. We already established ISO9001:2015 quality management system,ISO14001:2015 environment management system and OHSAS 18001:2007 health and safety management.We own the consummate equipments,the advanced craft and high technology.Our testing center has hardness instruments,roundness machine, roughness machine,noise and BVT testing machine,clearance instrument,inner/outer/width diameter instrument.which can provide scientific results of finished products in order to re-engineer improvements in production process. We also conduct all raw material chemical composition test to ensure product lifespan expectation result.before sending each lot,we must test quality from freedom products or 100% inspection as per customer’s request.
Insert ball bearings are widely used in mines,metallurgy,reaper and other agriculture machinery,textile machinery,printer machinery,conveying machinery, body building equipment,construction machinery,food machinery,packing machinery,medical apparatus and so on.
1.Reply within 24hours for your questions
2.Strictly quality control during production and inspect randomly before every delivery
3.Responsible dealing with each problem accured during our business
Q:Can I get your samples ? is it free or charged ?
A: Yes, we can offer some pieces of samples for free but the express cost is charged.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 15-30 days if the goods are out of stock.
Q: What is your terms of payment ?
A: Amount lower than 5000USD, 100% in advance. Amount more than 5000USD, 30% T/T in advance ,balance before shipment.
Q: Will you check these products before shipment?
A: Yes, all the bearings will be strictly controlled before shipment.
Q: What will you do if we are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
Looking forward to your inquiry !
